Product Description:
- Material: Aluminum oxide cloth, zirconia cloth or silicon oxide cloth.

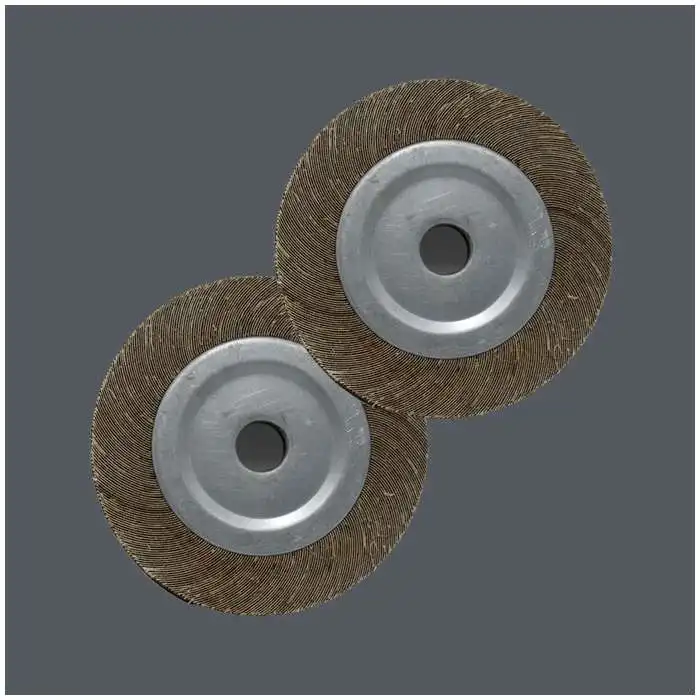

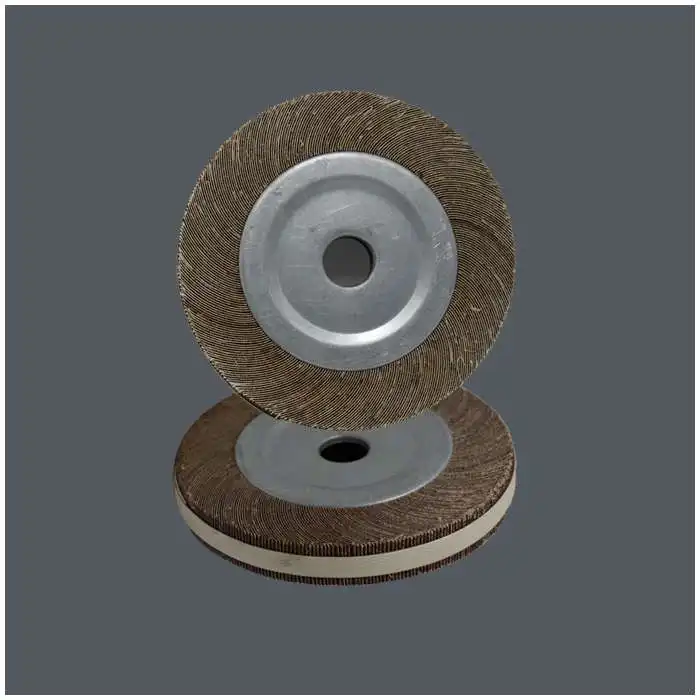

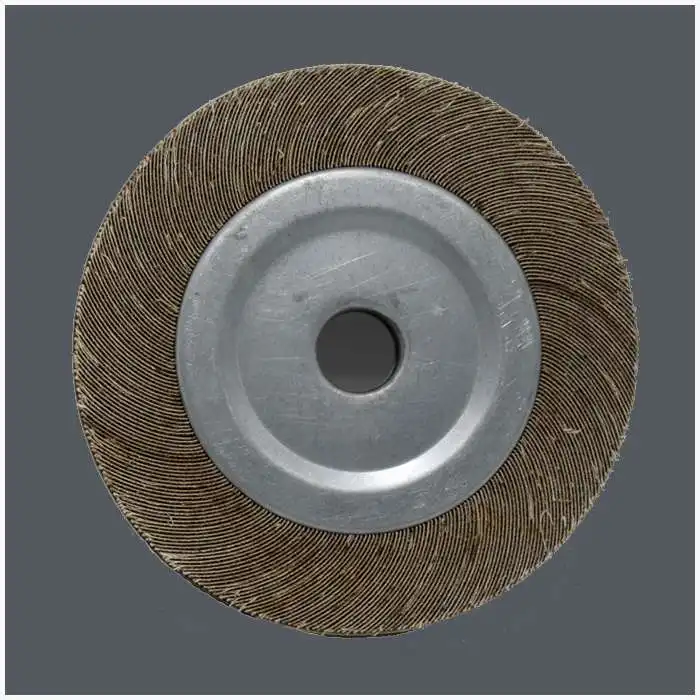

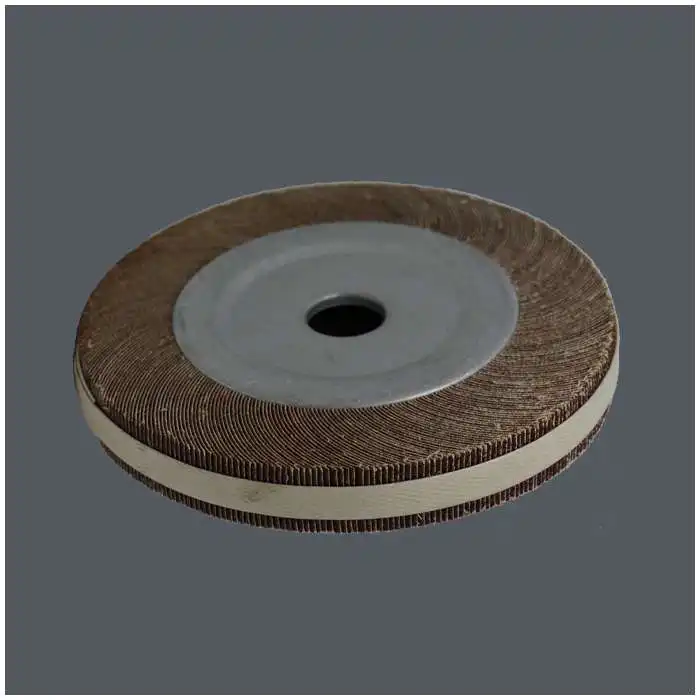

- Type: Unmounted/FlangedOur unmounted flap wheel is comprised of high-quality grinding flaps coated with aluminum oxide.
- The structure of the abrasive wheel provides for very soft, comfortable grinding behavior and adapts optimally to the contours of the work piece
Product Specifications:
| Dimensions (mm) | Dimensions (inches) | Grit Available | Max. RPM | Packaging | ||||||||
| Diam. x Thickness x Bore | Diam. x Thickness x Bore | units/pcs | ||||||||||
| 100 | x | 25 | x | 16 | 4 | x | 1 | x | 5/8 | P40/P60/P80/P120/P150/P180/P240/P320 | 8,800 | 10 |
| 100 | x | 50 | x | 16 | 4 | x | 2 | x | 5/8 | P40/P60/P80/P120/P150/P180/P240/P320 | 8,800 | 10 |
| 100 | x | 25 | x | 25 | 4 | x | 2 | x | 1 | P40/P60/P80/P120/P150/P180/P240/P320 | 8,800 | 10 |
| 150 | x | 25 | x | 25 | 6 | x | 1 | x | 1 | P40/P60/P80/P120/P150/P180/P240/P320 | 5,700 | 10 |
| 150 | x | 50 | x | 25 | 6. | x | 2 | x | 1 | P40/P60/P80/P120/P150/P180/P240/P320 | 5,700 | 10 |
| 165 | x | 25 | x | 25 | 6-1/2 | x | 1 | x | 1 | P40/P60/P80/P120/P150/P180/P240/P320 | 5,200 | 10 |
| 165 | x | 40 | x | 25 | 6-1/2 | x | 1-5/8 | x | 1 | P40/P60/P80/P120/P150/P180/P240/P320 | 5,200 | 10 |
| 165 | x | 50 | x | 30 | 6-1/2 | x | 2 | x | 1-3/16 | P40/P60/P80/P120/P150/P180/P240/P320 | 5,200 | 10 |
| 200 | x | 25 | x | 30 | 8 | x | 1 | x | 1-3/16 | P40/P60/P80/P120/P150/P180/P240/P320 | 4,300 | 10 |
| 200 | x | 50 | x | 54 | 8 | x | 2 | x | 2-1/8 | P40/P60/P80/P120/P150/P180/P240/P320 | 4,300 | 10 |
| 250 | x | 50 | x | 45 | 10 | x | 2 | x | 1-3/4 | P40/P60/P80/P120/P150/P180/P240/P320 | 3,400 | 10 |
| 250 | x | 25 | x | 100 | 10 | x | 1 | x | 4 | P40/P60/P80/P120/P150/P180/P240/P320 | 3,400 | 10 |
| 250 | x | 30 | x | 100 | 10 | x | 1-3/16 | x | 4 | P40/P60/P80/P120/P150/P180/P240/P320 | 3,400 | 10 |
| 250 | x | 50 | x | 100 | 10 | x | 2 | x | 4 | P40/P60/P80/P120/P150/P180/P240/P320 | 3,400 | 10 |
| 300 | x | 30 | x | 100 | 12 | x | 1-3/16 | x | 4 | P40/P60/P80/P120/P150/P180/P240/P320 | 2,850 | 10 |
| 300 | x | 50 | x | 100 | 12 | x | 2 | x | 4 | P40/P60/P80/P120/P150/P180/P240/P320 | 2,850 | 10 |
| 300 | x | 75 | x | 100 | 12 | x | 3 | x | 4 | P40/P60/P80/P120/P150/P180/P240/P320 | 2,850 | 10 |
| 350 | x | 30 | x | 132 | 14 | x | 1-3/16 | x | 5-1/8 | P40/P60/P80/P120/P150/P180/P240/P320 | 2,250 | 10 |
| 350 | x | 50 | x | 132 | 14 | x | 2 | x | 5-1/8 | P40/P60/P80/P120/P150/P180/P240/P320 | 2,250 | 10 |
| 350 | x | 100 | x | 132 | 14 | x | 4 | x | 5-1/8 | P40/P60/P80/P120/P150/P180/P240/P320 | 2,250 | 10 |
| 400 | x | 30 | x | 152 | 16 | x | 1-3/16 | x | 6 | P40/P60/P80/P120/P150/P180/P240/P320 | 2,050 | 10 |
| 400 | x | 75 | x | 152 | 16 | x | 3 | x | 6 | P40/P60/P80/P120/P150/P180/P240/P320 | 2,050 | 10 |
| 400 | x | 100 | x | 152 | 16 | x | 4 | x | 6 | P40/P60/P80/P120/P150/P180/P240/P320 | 2,050 | 10 |
Product Application:
- Finishing wide flat, concave and convex surface, grinding the internal and outer surfaces of tanks, containers and pipers, finishing parts of irregular shape such as handles, taps and moulded parts. Removing and cleaning welding seams.
- Work Surfaces: Stainless steel, standard steel, alloyed steel, aluminum, nonferrous metals and alloys, cast iron, titanium, plastics.
